How to call Oracle Fusion BIP Report from SOAP UI?

Let's first create a sample report that we will be calling from SOAP UI. This report will return Code Combination Id for given segment values:

Login to Oracle Fusion Catalog by using the URL: https://<hostname>.oraclecloud.com/analytics

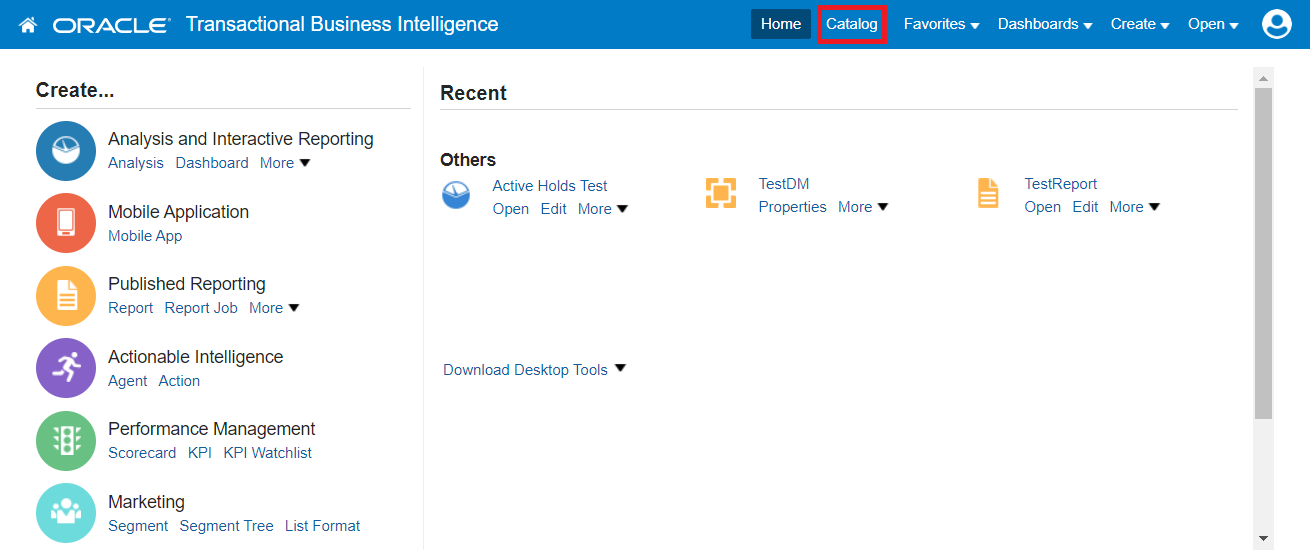

Click on Catalog link to go to catalog

There are two folders in Catalog:

My Folders - This is private to logged in user only
Shared Folders - This is available to all the users having BI Access. We create our custom reports in /Shared Folders/Custom folder only.

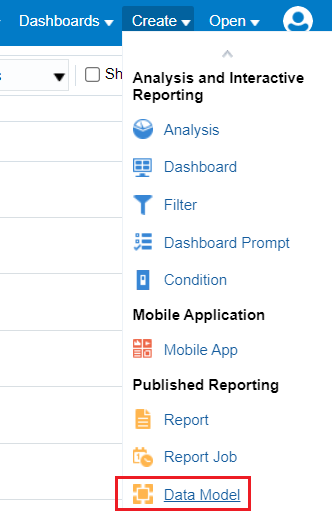

Click Create -> Data Model to create new Data Model. Data Model is the source of the data for the BIP Report.

Click on Add New Data Set and select SQL Query:

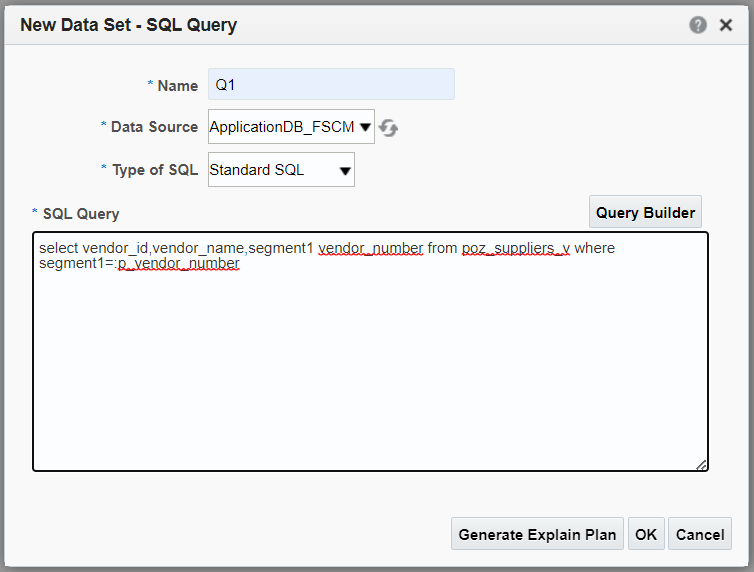

Enter the Name as Q1, select Data Source as ApplicationDB_FSCM and Type of SQL: Standard SQL

SELECT vendor_id,
       vendor_name,
       segment1 vendor_number
FROM   poz_suppliers_v
WHERE  segment1 = :p_vendor_number

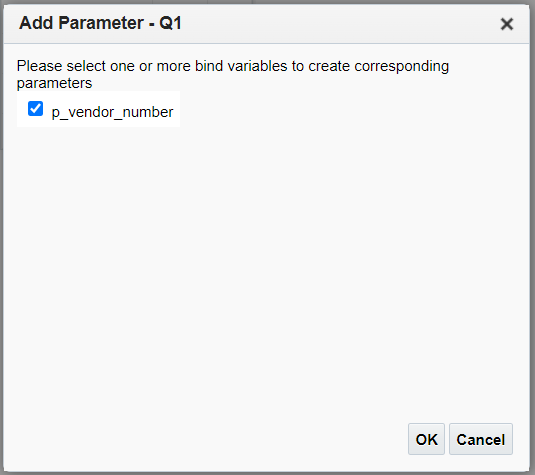

Select the bind parameter

Change the Display Label as Vendor Number. Note that parameter name is p_vendor_number

Change the below properties of Data Model:

Enable CSV Output as true

Include Parameter Tags as false

Go to Data Tab and click on view button after entering the Vendor Number in the text box and then click on Save as Sample Data:

Save the data model.

Click on Create Report and select "Use Report Editor" and click Finish button

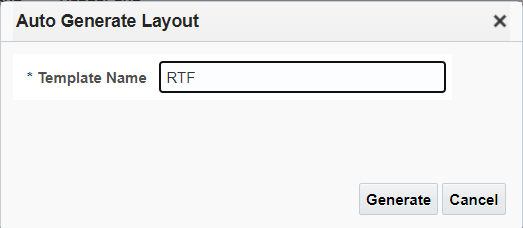

Click on Generate RTF layout based on selected Data Model. and give it a name

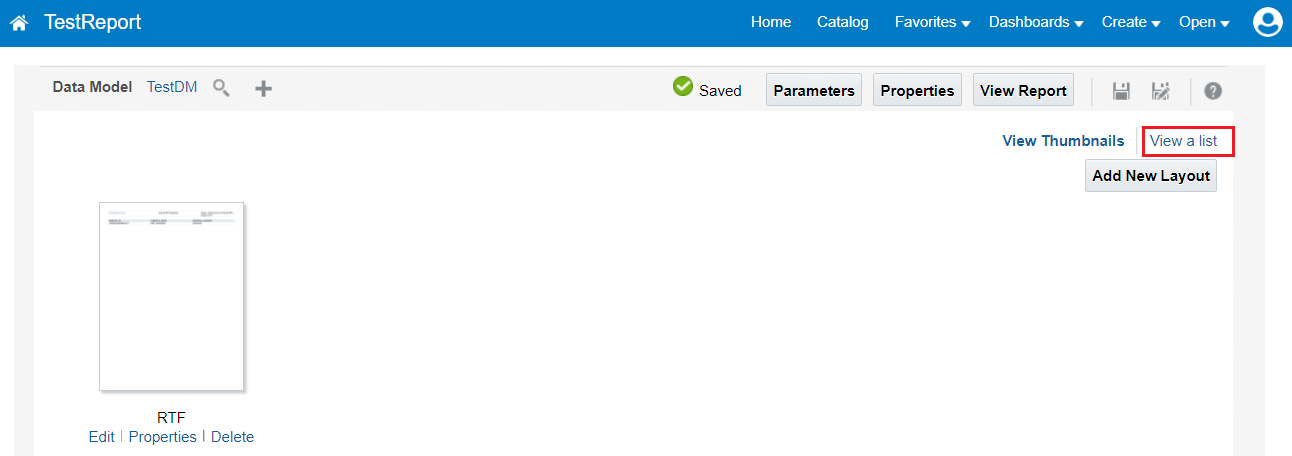

Click on View a list:

In Output Formats, choose only Data (CSV) and click on save button

Report is ready now. Click on Schedule and copy the report location (/Custom/Sample/TestReport.xdo)

Now to call the report from SOAP UI we need external report service WSDL URL (https://<hostname>.oraclecloud.com/xmlpserver/services/ExternalReportWSSService?WSDL)

Click on Create new SOAP project

Enter Project Name and give the WSDL URL and click OK

We will use runReport operation of this service

Double click on Request 1 to open it

Use the below body for Request Envelope

<soap:Envelope xmlns:soap="http://www.w3.org/2003/05/soap-envelope" xmlns:pub="http://xmlns.oracle.com/oxp/service/PublicReportService">
   <soap:Header/>
   <soap:Body>
      <pub:runReport>
         <pub:reportRequest>
            <pub:attributeFormat>csv</pub:attributeFormat>
            <pub:parameterNameValues>
               <!--Zero or more repetitions:-->
               <pub:item>
                  <pub:name>p_vendor_number</pub:name>
                  <pub:values>
                     <!--Zero or more repetitions:-->
                     <pub:item>1000401</pub:item>
                  </pub:values>
               </pub:item>
            </pub:parameterNameValues>
            <pub:reportAbsolutePath>/Custom/Sample/TestReport.xdo</pub:reportAbsolutePath>
            <pub:sizeOfDataChunkDownload>-1</pub:sizeOfDataChunkDownload>
         </pub:reportRequest>
      </pub:runReport>
   </soap:Body>
</soap:Envelope>

In case you have multiple parameters you can use the below

<soap:Envelope xmlns:soap="http://www.w3.org/2003/05/soap-envelope" xmlns:pub="http://xmlns.oracle.com/oxp/service/PublicReportService">
   <soap:Header/>
   <soap:Body>
      <pub:runReport>
         <pub:reportRequest>
            <pub:attributeFormat>csv</pub:attributeFormat>
            <pub:parameterNameValues>
               <pub:item>
                  <pub:name>param1</pub:name>
                  <pub:values>
                     <pub:item>value1</pub:item>
                  </pub:values>
               </pub:item>

               <pub:item>
                  <pub:name>param2</pub:name>
                  <pub:values>
                     <pub:item>value2</pub:item>
                  </pub:values>
               </pub:item>
            </pub:parameterNameValues>
            <pub:reportAbsolutePath>/Custom/Sample/TestReport.xdo</pub:reportAbsolutePath>
            <pub:sizeOfDataChunkDownload>-1</pub:sizeOfDataChunkDownload>
         </pub:reportRequest>
      </pub:runReport>
   </soap:Body>
</soap:Envelope>
